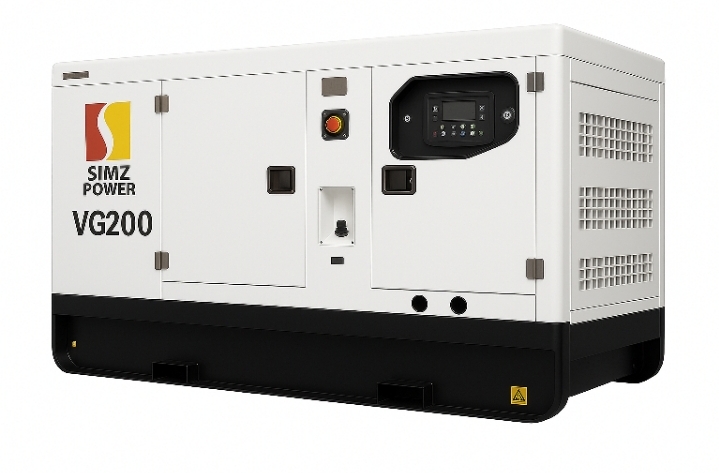

VG200 Diesel Generator Three-Phase

Overview
Introducing the VG200 Diesel Generator, a robust and reliable power solution designed to meet the demands of various industrial applications. Powered by a high-performance RICARDO engine and coupled with a top-tier Stamford alternator, the VG200 is engineered for durability and efficiency, ensuring seamless operation even in the most challenging environments.

Key Features

-Power Output: The VG200 delivers a maximum output of 200 kW, making it suitable for both standby and prime applications.

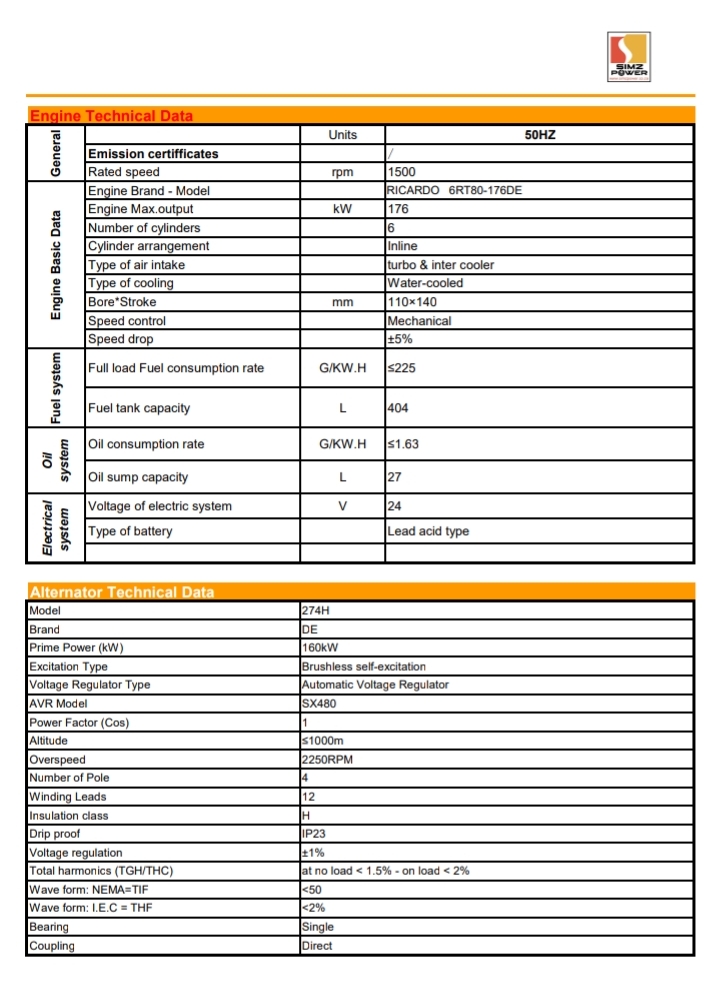

– Engine Specifications:
– **Type**: RICARDO 6RT80-76DE
– **Rated Speed**: 1500 RPM
– **Number of Cylinders**: 6
– **Displacement**: Engineered for optimal fuel efficiency and performance.
– **Alternator Specifications**:
– **Model**: Stamford
– **Voltage**: 380V, 50Hz
– **Power Factor**: 0.8 lagging

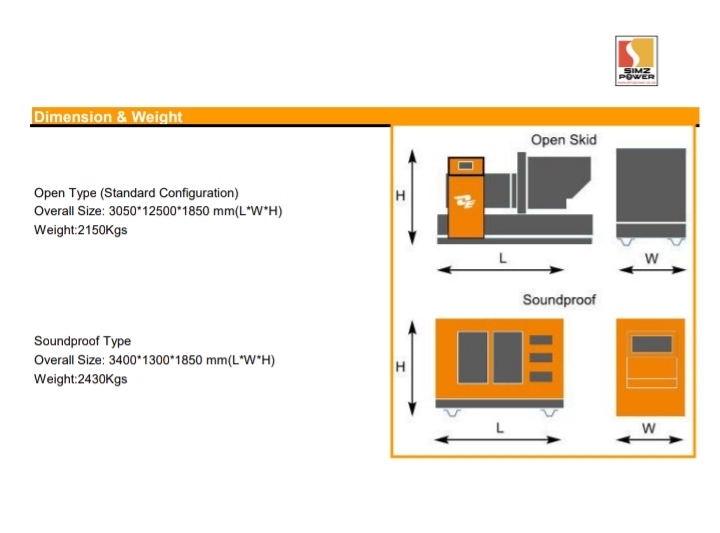

## Dimensions and Weight

### Open Type (Standard Configuration)
– **Overall Size**: 3050 mm (L) x 1520 mm (W) x 1850 mm (H)
– **Weight**: 2150 kg

### Soundproof Type
– **Overall Size**: 3400 mm (L) x 1300 mm (W) x 1850 mm (H)
– **Weight**: 2430 kg

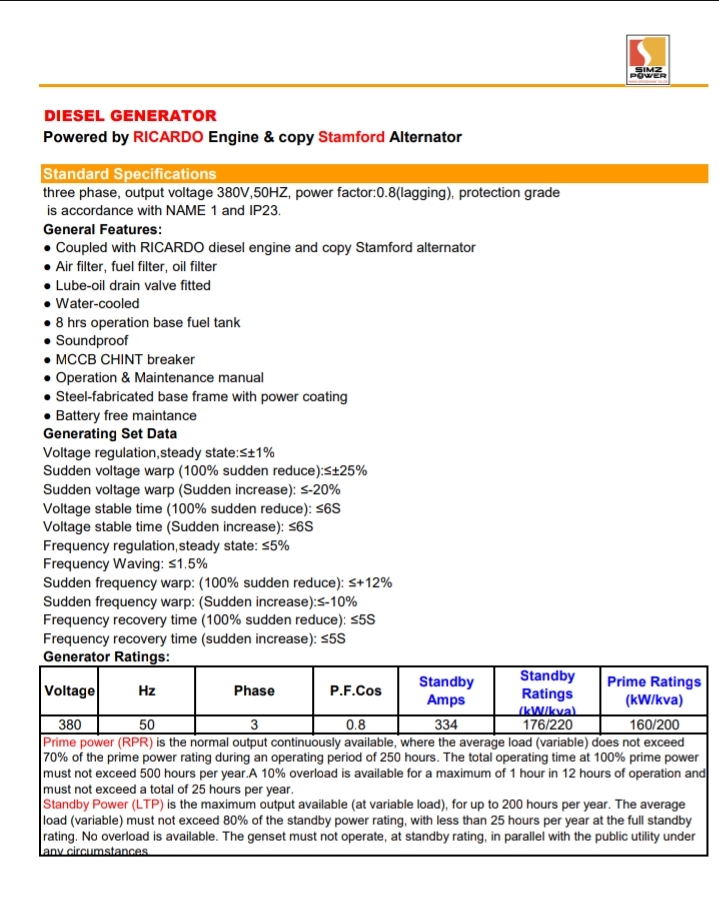

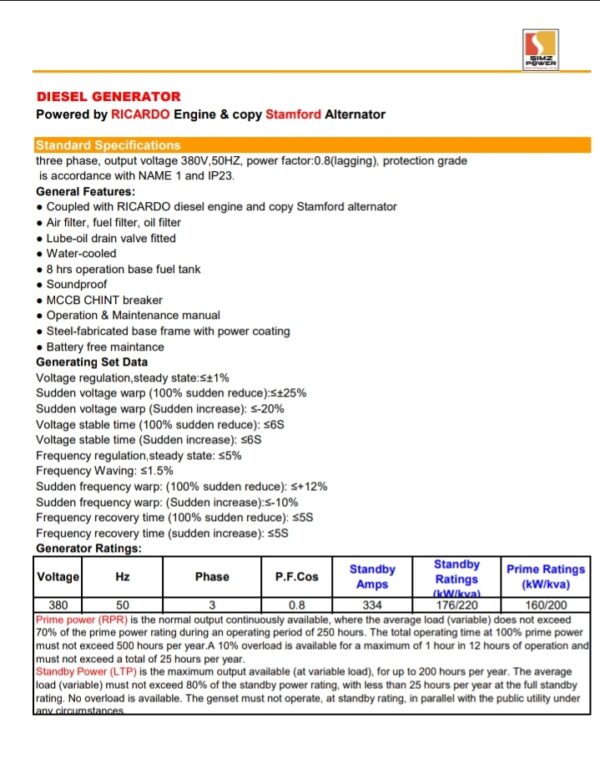

## Technical Data
– **Fuel Consumption**: Optimized for low fuel consumption at full load.
– **Oil Capacity**: 15 liters, ensuring long operational times between maintenance.
– **Cooling System**: Mechanical, designed for efficient heat dissipation.

## Performance Characteristics
– **Voltage Stability**: Sudden voltage drops are minimized with a regulation of less than ±5%
– **Noise Level**: Designed with soundproofing for quieter operation, making it ideal for urban environments.

## Applications
The VG200 Diesel Generator is perfect for:
– Industrial operations
– Construction sites
– Events and temporary power needs
– Emergency backup for critical systems

## Conclusion
Choose the VG200 Diesel Generator for a powerful, efficient, and reliable energy solution tailored to your needs. With its advanced technology and robust design, rest assured that your power requirements are in safe hands.

Errors & Omissions Excepted (E&EO
